madler產品德國制造氣動元件氣缸系列
特點：活塞及活塞桿密封件為PUR，可以在潤滑或者無潤滑的介質中，帶有磁性活塞可以調節的雙向作用，帶有緩沖防撞系統ACS。
型號及特點：
madler品牌產品氣動元件標準氣缸U形夾：后置環首螺絲支架，用于端蓋上的安裝構件
madler品牌產品氣動元件輕巧型氣缸活塞桿：螺母材質為鍍鋅鋼，活塞桿上的安裝構件
madler品牌產品氣動元件缸筒上磁性開關：帶簧片觸點的磁性開關，支架的材質是塑料
- ta:image/png;base64,iVBORw0KGgoAAAANSUhEUgAAAAEAAABQCAIAAABXpYiMAAAAAXNSR0IArs4c6QAAAARnQU1BAACxjwv8YQUAAAAJcEhZcwAADsMAAA7DAcdvqGQAAAAYdEVYdFNvZnR3YXJlAHBhaW50Lm5ldCA0LjAuNWWFMmUAAABhSURBVChT3cWhGgFRAITR/7UlbZOmadImTZEkSdqkCIoiCGstl70z5jmE8x1qP0OPOXVoYoGGJXqu0LhGrxa9N7FFZYfLPh/w54i/HZpO+ZwvqF7jhusdq48xCvYU/k/2D/lr6GyyHlasAAAAAElFTkSuQmCC") repeat-x;">

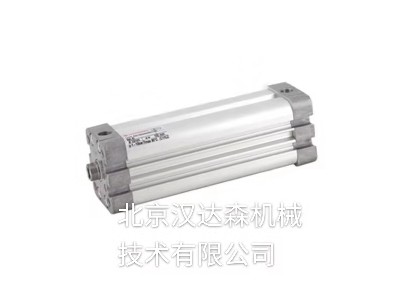

符合ISO15552的帶磁性活塞的雙重作用標準汽缸
- ta:image/png;base64,iVBORw0KGgoAAAANSUhEUgAAAAEAAABQCAIAAABXpYiMAAAAAXNSR0IArs4c6QAAAARnQU1BAACxjwv8YQUAAAAJcEhZcwAADsMAAA7DAcdvqGQAAAAYdEVYdFNvZnR3YXJlAHBhaW50Lm5ldCA0LjAuNWWFMmUAAABhSURBVChT3cWhGgFRAITR/7UlbZOmadImTZEkSdqkCIoiCGstl70z5jmE8x1qP0OPOXVoYoGGJXqu0LhGrxa9N7FFZYfLPh/w54i/HZpO+ZwvqF7jhusdq48xCvYU/k/2D/lr6GyyHlasAAAAAElFTkSuQmCC") repeat-x;">
活塞桿旋轉支架
- ta:image/png;base64,iVBORw0KGgoAAAANSUhEUgAAAAEAAABQCAIAAABXpYiMAAAAAXNSR0IArs4c6QAAAARnQU1BAACxjwv8YQUAAAAJcEhZcwAADsMAAA7DAcdvqGQAAAAYdEVYdFNvZnR3YXJlAHBhaW50Lm5ldCA0LjAuNWWFMmUAAABhSURBVChT3cWhGgFRAITR/7UlbZOmadImTZEkSdqkCIoiCGstl70z5jmE8x1qP0OPOXVoYoGGJXqu0LhGrxa9N7FFZYfLPh/w54i/HZpO+ZwvqF7jhusdq48xCvYU/k/2D/lr6GyyHlasAAAAAElFTkSuQmCC") repeat-x;">
后置法蘭和前置法蘭盤
- ta:image/png;base64,iVBORw0KGgoAAAANSUhEUgAAAAEAAABQCAIAAABXpYiMAAAAAXNSR0IArs4c6QAAAARnQU1BAACxjwv8YQUAAAAJcEhZcwAADsMAAA7DAcdvqGQAAAAYdEVYdFNvZnR3YXJlAHBhaW50Lm5ldCA0LjAuNWWFMmUAAABhSURBVChT3cWhGgFRAITR/7UlbZOmadImTZEkSdqkCIoiCGstl70z5jmE8x1qP0OPOXVoYoGGJXqu0LhGrxa9N7FFZYfLPh/w54i/HZpO+ZwvqF7jhusdq48xCvYU/k/2D/lr6GyyHlasAAAAAElFTkSuQmCC") repeat-x;">
底板支架
- ta:image/png;base64,iVBORw0KGgoAAAANSUhEUgAAAAEAAABQCAIAAABXpYiMAAAAAXNSR0IArs4c6QAAAARnQU1BAACxjwv8YQUAAAAJcEhZcwAADsMAAA7DAcdvqGQAAAAYdEVYdFNvZnR3YXJlAHBhaW50Lm5ldCA0LjAuNWWFMmUAAABhSURBVChT3cWhGgFRAITR/7UlbZOmadImTZEkSdqkCIoiCGstl70z5jmE8x1qP0OPOXVoYoGGJXqu0LhGrxa9N7FFZYfLPh/w54i/HZpO+ZwvqF7jhusdq48xCvYU/k/2D/lr6GyyHlasAAAAAElFTkSuQmCC") repeat-x;">
后置寬Ｕ形夾安裝件
- ta:image/png;base64,iVBORw0KGgoAAAANSUhEUgAAAAEAAABQCAIAAABXpYiMAAAAAXNSR0IArs4c6QAAAARnQU1BAACxjwv8YQUAAAAJcEhZcwAADsMAAA7DAcdvqGQAAAAYdEVYdFNvZnR3YXJlAHBhaW50Lm5ldCA0LjAuNWWFMmUAAABhSURBVChT3cWhGgFRAITR/7UlbZOmadImTZEkSdqkCIoiCGstl70z5jmE8x1qP0OPOXVoYoGGJXqu0LhGrxa9N7FFZYfLPh/w54i/HZpO+ZwvqF7jhusdq48xCvYU/k/2D/lr6GyyHlasAAAAAElFTkSuQmCC") repeat-x;">
后置細長型Ｕ形夾安裝件
- ta:image/png;base64,iVBORw0KGgoAAAANSUhEUgAAAAEAAABQCAIAAABXpYiMAAAAAXNSR0IArs4c6QAAAARnQU1BAACxjwv8YQUAAAAJcEhZcwAADsMAAA7DAcdvqGQAAAAYdEVYdFNvZnR3YXJlAHBhaW50Lm5ldCA0LjAuNWWFMmUAAABhSURBVChT3cWhGgFRAITR/7UlbZOmadImTZEkSdqkCIoiCGstl70z5jmE8x1qP0OPOXVoYoGGJXqu0LhGrxa9N7FFZYfLPh/w54i/HZpO+ZwvqF7jhusdq48xCvYU/k/2D/lr6GyyHlasAAAAAElFTkSuQmCC") repeat-x;">
氣缸Ｕ形夾
- ta:image/png;base64,iVBORw0KGgoAAAANSUhEUgAAAAEAAABQCAIAAABXpYiMAAAAAXNSR0IArs4c6QAAAARnQU1BAACxjwv8YQUAAAAJcEhZcwAADsMAAA7DAcdvqGQAAAAYdEVYdFNvZnR3YXJlAHBhaW50Lm5ldCA0LjAuNWWFMmUAAABhSURBVChT3cWhGgFRAITR/7UlbZOmadImTZEkSdqkCIoiCGstl70z5jmE8x1qP0OPOXVoYoGGJXqu0LhGrxa9N7FFZYfLPh/w54i/HZpO+ZwvqF7jhusdq48xCvYU/k/2D/lr6GyyHlasAAAAAElFTkSuQmCC") repeat-x;">
帶球面軸承的通用活塞桿支架
- ta:image/png;base64,iVBORw0KGgoAAAANSUhEUgAAAAEAAABQCAIAAABXpYiMAAAAAXNSR0IArs4c6QAAAARnQU1BAACxjwv8YQUAAAAJcEhZcwAADsMAAA7DAcdvqGQAAAAYdEVYdFNvZnR3YXJlAHBhaW50Lm5ldCA0LjAuNWWFMmUAAABhSURBVChT3cWhGgFRAITR/7UlbZOmadImTZEkSdqkCIoiCGstl70z5jmE8x1qP0OPOXVoYoGGJXqu0LhGrxa9N7FFZYfLPh/w54i/HZpO+ZwvqF7jhusdq48xCvYU/k/2D/lr6GyyHlasAAAAAElFTkSuQmCC") repeat-x;">
剛性寬鉸鏈安裝支架，與5號配套
- ta:image/png;base64,iVBORw0KGgoAAAANSUhEUgAAAAEAAABQCAIAAABXpYiMAAAAAXNSR0IArs4c6QAAAARnQU1BAACxjwv8YQUAAAAJcEhZcwAADsMAAA7DAcdvqGQAAAAYdEVYdFNvZnR3YXJlAHBhaW50Lm5ldCA0LjAuNWWFMmUAAABhSURBVChT3cWhGgFRAITR/7UlbZOmadImTZEkSdqkCIoiCGstl70z5jmE8x1qP0OPOXVoYoGGJXqu0LhGrxa9N7FFZYfLPh/w54i/HZpO+ZwvqF7jhusdq48xCvYU/k/2D/lr6GyyHlasAAAAAElFTkSuQmCC") repeat-x;">
剛性細長鉸鏈安裝支架，與13號配套
- ta:image/png;base64,iVBORw0KGgoAAAANSUhEUgAAAAEAAABQCAIAAABXpYiMAAAAAXNSR0IArs4c6QAAAARnQU1BAACxjwv8YQUAAAAJcEhZcwAADsMAAA7DAcdvqGQAAAAYdEVYdFNvZnR3YXJlAHBhaW50Lm5ldCA0LjAuNWWFMmUAAABhSURBVChT3cWhGgFRAITR/7UlbZOmadImTZEkSdqkCIoiCGstl70z5jmE8x1qP0OPOXVoYoGGJXqu0LhGrxa9N7FFZYfLPh/w54i/HZpO+ZwvqF7jhusdq48xCvYU/k/2D/lr6GyyHlasAAAAAElFTkSuQmCC") repeat-x;">
帶球面軸承鉸鏈安裝支架，與7號配套
- ta:image/png;base64,iVBORw0KGgoAAAANSUhEUgAAAAEAAABQCAIAAABXpYiMAAAAAXNSR0IArs4c6QAAAARnQU1BAACxjwv8YQUAAAAJcEhZcwAADsMAAA7DAcdvqGQAAAAYdEVYdFNvZnR3YXJlAHBhaW50Lm5ldCA0LjAuNWWFMmUAAABhSURBVChT3cWhGgFRAITR/7UlbZOmadImTZEkSdqkCIoiCGstl70z5jmE8x1qP0OPOXVoYoGGJXqu0LhGrxa9N7FFZYfLPh/w54i/HZpO+ZwvqF7jhusdq48xCvYU/k/2D/lr6GyyHlasAAAAAElFTkSuQmCC") repeat-x;">
后置環首螺絲支架
- ta:image/png;base64,iVBORw0KGgoAAAANSUhEUgAAAAEAAABQCAIAAABXpYiMAAAAAXNSR0IArs4c6QAAAARnQU1BAACxjwv8YQUAAAAJcEhZcwAADsMAAA7DAcdvqGQAAAAYdEVYdFNvZnR3YXJlAHBhaW50Lm5ldCA0LjAuNWWFMmUAAABhSURBVChT3cWhGgFRAITR/7UlbZOmadImTZEkSdqkCIoiCGstl70z5jmE8x1qP0OPOXVoYoGGJXqu0LhGrxa9N7FFZYfLPh/w54i/HZpO+ZwvqF7jhusdq48xCvYU/k/2D/lr6GyyHlasAAAAAElFTkSuQmCC") repeat-x;">
帶球面軸承的后置環首螺絲支架
- ta:image/png;base64,iVBORw0KGgoAAAANSUhEUgAAAAEAAABQCAIAAABXpYiMAAAAAXNSR0IArs4c6QAAAARnQU1BAACxjwv8YQUAAAAJcEhZcwAADsMAAA7DAcdvqGQAAAAYdEVYdFNvZnR3YXJlAHBhaW50Lm5ldCA0LjAuNWWFMmUAAABhSURBVChT3cWhGgFRAITR/7UlbZOmadImTZEkSdqkCIoiCGstl70z5jmE8x1qP0OPOXVoYoGGJXqu0LhGrxa9N7FFZYfLPh/w54i/HZpO+ZwvqF7jhusdq48xCvYU/k/2D/lr6GyyHlasAAAAAElFTkSuQmCC") repeat-x;">
耳軸支架
- ta:image/png;base64,iVBORw0KGgoAAAANSUhEUgAAAAEAAABQCAIAAABXpYiMAAAAAXNSR0IArs4c6QAAAARnQU1BAACxjwv8YQUAAAAJcEhZcwAADsMAAA7DAcdvqGQAAAAYdEVYdFNvZnR3YXJlAHBhaW50Lm5ldCA0LjAuNWWFMmUAAABhSURBVChT3cWhGgFRAITR/7UlbZOmadImTZEkSdqkCIoiCGstl70z5jmE8x1qP0OPOXVoYoGGJXqu0LhGrxa9N7FFZYfLPh/w54i/HZpO+ZwvqF7jhusdq48xCvYU/k/2D/lr6GyyHlasAAAAAElFTkSuQmCC") repeat-x;">
旋轉軸承
 |
 |
您也許有興趣的產品：
- ta:image/png;base64,iVBORw0KGgoAAAANSUhEUgAAAAEAAABQCAIAAABXpYiMAAAAAXNSR0IArs4c6QAAAARnQU1BAACxjwv8YQUAAAAJcEhZcwAADsMAAA7DAcdvqGQAAAAYdEVYdFNvZnR3YXJlAHBhaW50Lm5ldCA0LjAuNWWFMmUAAABhSURBVChT3cWhGgFRAITR/7UlbZOmadImTZEkSdqkCIoiCGstl70z5jmE8x1qP0OPOXVoYoGGJXqu0LhGrxa9N7FFZYfLPh/w54i/HZpO+ZwvqF7jhusdq48xCvYU/k/2D/lr6GyyHlasAAAAAElFTkSuQmCC") repeat-x;">
圓筒形夾
|
材質：氣缸筒：陽極氧化鋁。端蓋：壓鑄鋁。活塞桿：不銹鋼（鐵素
體），活塞及活塞桿密封件：PUR。O形環密封件：NBR。
介質：壓縮空氣，經過濾，潤滑或無潤滑。
標準：ISO15552。
操作模式：帶有磁性活塞可以調節的雙向作用，帶有緩沖防撞系統
ACS。
運行壓力：1-12巴
運行溫度：-20° C?+ 80°C （最大）
低于+ 2°C時請考慮空氣質量。
| 產品展示 |
|
數量 |
氣缸直徑
[mm] |
標準行程
[mm] |
連接器 |
定理。0.6 MPa時的剪切力
[N] |
定理。0.6 MPa時的彈簧力
[N] |
阻尼長度
[mm] |
阻尼能力
[cm³] |
E
[毫米] |
L8
[毫米] |
0毫米時的重量
[kg] |
每25毫米重量
[kg] |
| |
80132025 |
|
 |
32 |
25 |
G 1/8 |
482 |
414 |
20 |
12,8 |
47 |
94 |
0,49 |
0,06 |
| |
80132050 |
|
|
32 |
50 |
G 1/8 |
482 |
414 |
20 |
12,8 |
47 |
94 |
0,49 |
0,06 |
| |
80132080 |
|
|
32 |
80 |
G 1/8 |
482 |
414 |
20 |
12,8 |
47 |
94 |
0,49 |
0,06 |
| |
80132100 |
|
|
32 |
100 |
G 1/8 |
482 |
414 |
20 |
12,8 |
47 |
94 |
0,49 |
0,06 |
| |
80132125 |
|
|
32 |
125 |
G 1/8 |
482 |
414 |
20 |
12,8 |
47 |
94 |
0,49 |
0,06 |
| |
80132160 |
|
|
32 |
160 |
G 1/8 |
482 |
414 |
20 |
12,8 |
47 |
94 |
0,49 |
0,06 |
| |
80132200 |
|
|
32 |
200 |
G 1/8 |
482 |
414 |
20 |
12,8 |
47 |
94 |
0,49 |
0,06 |
| |
80132250 |
|
|
32 |
250 |
G 1/8 |
482 |
414 |
20 |
12,8 |
47 |
94 |
0,49 |
0,06 |
| |
80140025 |
|
|
40 |
25 |
G 1/4 |
754 |
633 |
22 |
20,2 |
53 |
105 |
0,69 |
0,08 |
| |
80140050 |
|
|
40 |
50 |
G 1/4 |
754 |
633 |
22 |
20,2 |
53 |
105 |
0,69 |
0,08 |
| |
80140080 |
|
|
40 |
80 |
G 1/4 |
754 |
633 |
22 |
20,2 |
53 |
105 |
0,69 |
0,08 |
| |
80140100 |
|
|
40 |
100 |
G 1/4 |
754 |
633 |
22 |
20,2 |
53 |
105 |
0,69 |
0,08 |
| |
80140125 |
|
|
40 |
125 |
G 1/4 |
754 |
633 |
22 |
20,2 |
53 |
105 |
0,69 |
0,08 |
| |
80140160 |
|
|
40 |
160 |
G 1/4 |
754 |
633 |
22 |
20,2 |
53 |
105 |
0,69 |
0,08 |
| |
80140200 |
|
|
40 |
200 |
G 1/4 |
754 |
633 |
22 |
20,2 |
53 |
105 |
0,69 |
0,08 |
| |
80140250 |
|
|
40 |
250 |
G 1/4 |
754 |
633 |
22 |
20,2 |
53 |
105 |
0,69 |
0,08 |
| |
80150025 |
|
|
50 |
25 |
G 1/4 |
1178 |
990 |
24 |
36.0 |
65歲 |
106 |
1,09 |
0,12 |
| |
80150050 |
|
|
50 |
50 |
G 1/4 |
1178 |
990 |
24 |
36.0 |
65歲 |
106 |
1,09 |
0,12 |
| |
80150080 |
|
|
50 |
80 |
G 1/4 |
1178 |
990 |
24 |
36.0 |
65歲 |
106 |
1,09 |
0,12 |
| |
80150100 |
|
|
50 |
100 |
G 1/4 |
1178 |
990 |
24 |
36.0 |
65歲 |
106 |
1,09 |
0,12 |
| |
80150125 |
|
|
50 |
125 |
G 1/4 |
1178 |
990 |
24 |
36.0 |
65歲 |
106 |
1,09 |
0,12 |
| |
80150160 |
|
|
50 |
160 |
G 1/4 |
1178 |
990 |
24 |
36.0 |
65歲 |
106 |
1,09 |
0,12 |
| |
80150200 |
|
|
50 |
200 |
G 1/4 |
1178 |
990 |
24 |
36.0 |
65歲 |
106 |
1,09 |
0,12 |
| |
80150250 |
|
|
50 |
250 |
G 1/4 |
1178 |
990 |
24 |
36.0 |
65歲 |
106 |
1,09 |
0,12 |
| |
80163025 |
|
|
63 |
25 |
G 3/8 |
1870年 |
1680 |
24 |
64,0 |
75 |
121 |
1,54 |
0,13 |
| |
80163050 |
|
|
63 |
50 |
G 3/8 |
1870年 |
1680 |
24 |
64,0 |
75 |
121 |
1,54 |
0,13 |
| |
80163080 |
|
|
63 |
80 |
G 3/8 |
1870年 |
1680 |
24 |
64,0 |
75 |
121 |
1,54 |
0,13 |
| |
80163100 |
|
|
63 |
100 |
G 3/8 |
1870年 |
1680 |
24 |
64,0 |
75 |
121 |
1,54 |
0,13 |
| |
80163125 |
|
|
63 |
125 |
G 3/8 |
1870年 |
1680 |
24 |
64,0 |
75 |
121 |
1,54 |
0,13 |
| |
80163160 |
|
|
63 |
160 |
G 3/8 |
1870年 |
1680 |
24 |
64,0 |
75 |
121 |
1,54 |
0,13 |
| |
80163200 |
|
|
63 |
200 |
G 3/8 |
1870年 |
1680 |
24 |
64,0 |
75 |
121 |
1,54 |
0,13 |
| |
80163250 |
|
|
63 |
250 |
G 3/8 |
1870年 |
1680 |
24 |
64,0 |
75 |
121 |
1,54 |
0,13 |
| |
80180025 |
|
|
80 |
25 |
G 3/8 |
3016 |
2722 |
26 |
111,0 |
95 |
128 |
2,64 |
0,20 |
| |
80180050 |
|
|
80 |
50 |
G 3/8 |
3016 |
2722 |
26 |
111,0 |
95 |
128 |
2,64 |
0,20 |
| |
80180080 |
|
|
80 |
80 |
G 3/8 |
3016 |
2722 |
26 |
111,0 |
95 |
128 |
2,64 |
0,20 |
| |
80180100 |
|
|
80 |
100 |
G 3/8 |
3016 |
2722 |
26 |
111,0 |
95 |
128 |
2,64 |
0,20 |
| |
80180125 |
|
|
80 |
125 |
G 3/8 |
3016 |
2722 |
26 |
111,0 |
95 |
128 |
2,64 |
0,20 |
| |
80180160 |
|
|
80 |
160 |
G 3/8 |
3016 |
2722 |
26 |
111,0 |
95 |
128 |
2,64 |
0,20 |
| |
80180200 |
|
|
80 |
200 |
G 3/8 |
3016 |
2722 |
26 |
111,0 |
95 |
128 |
2,64 |
0,20 |
| |
80180250 |
|
|
80 |
250 |
G 3/8 |
3016 |
2722 |
26 |
111,0 |
95 |
128 |
2,64 |
0,20 |
