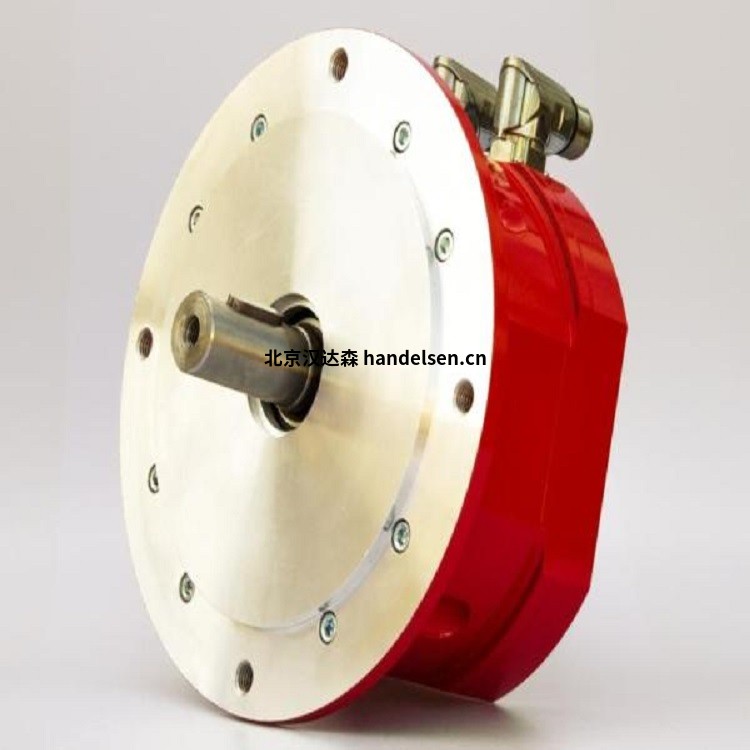

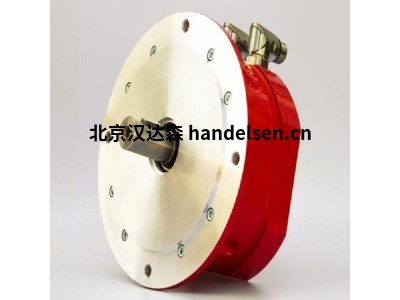

Mattke無刷伺服盤式電機MC 19-BL型



   Mattke專注于伺服驅動技術領域超過 50 年，為客戶自動化任務提供解決方案。Mattke 提供電氣驅動技術領域最全面的產品。從無刷和有刷伺服電機到無鐵心直線電機、帶齒形皮帶的直線單元、升降主軸驅動器、電動升降缸、模擬和時鐘伺服控制器、定位控制、各種齒輪等等。Mattke是parker自動化行業的重要合作伙伴。



Mattke MC 19-BL型無刷伺服盤式電機參數舉例：

失速扭矩：5 Nm

最大電壓：350 V

堵轉電流：4,6 A

額定電流：3,4 A

標稱扭矩：3,6 Nm

標稱功率：1100 W

標稱速度：3000 min-1

最大速度：5000 min-1

峰值電流：14 A

電壓常數：66 V/Krpm

扭矩常數：1,1 Nm/A

轉子慣量：12 kg cm2

20°C 時的繞組電阻：2,3 Ohm

1 kHz 時的電感：6,8 mH

重量：6,4 公斤



Mattke無刷伺服電機實例型號：

mattke MC 17-BL

mattke MC 19-BL

mattke MC 23-BL

mattke LSR0010/L1-060

mattke MSR0010/L1-060

mattke LSR0020/L1-060

mattke MSR0020/L1-060

mattke MSR0020/L2-045

mattke HSR0020/L2-060

mattke MSR0040/L2-045

mattke HSR0040/L2-045

mattke MSR0060/L2-045

mattke HSR0060/L2-045

mattke MSR0065/L3-045

mattke HSR0065/L3-045

mattke MSR0130/L3-030

mattke HSR0130/L3-030

mattke MSR0250/L3-030

mattke HSR0250/L3-030

mattke MSR0260/L4-030

mattke HSR0260/L4-030

mattke MSR0390/L4-030

mattke HSR0390/L4-030

mattke MSR0530/L4-030

mattke HSR0530/L4-030

mattke MSR0660/L5-030

mattke HSR0660/L5-030

mattke MSR0750/L4-030

mattke MSR0950/L4-030

mattke HSR0950/L4-030

mattke HSR1350/L5-030

mattke HSR1700/L5-030

mattke HSR2200/L5-030

mattke HSR1900/L6-030

mattke HSR2200/L6-030

mattke HSR2900/L6-030

mattke HSR2700/L7-030

mattke HSR3200/L7-030

mattke HSR4000/L7-030

mattke HSR0400/L8-030

mattke HSR0680/L8-030

mattke HSR0930/L8-020

mattke HSR1150/L8-020
