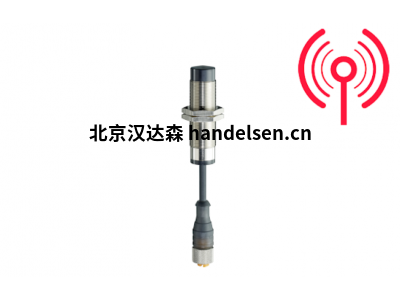

Steute RF IS M30 NB-ST
金屬外殼
M30 x 1.5 螺紋
非嵌入式安裝
連接到RF 96 ST 或 RF I/O 通用發射器
帶 M12 聯軸器，4 極
筆記
交付中包含 2 個安裝螺母
技術數據
適用標準EN 60947-5-2、EN 61000-6-2、EN 61000-6-3
外殼黃銅，鍍鎳
執行器鋼板 45 x 45 x 1 毫米，F(xiàn)E 360
前蓋PVC，黑色
后蓋PVC，黑色
防護等級IP 67 符合 IEC/EN 60529
聯系聯軸器 M12 x 1，4 極
電纜長度0.5 m、1 m 或 2 m
環境溫度–25 °C … +70 °C
額定絕緣電壓 U i75 伏直流電
額定工作電流 I e0.2毫安
額定工作電壓 U e3 … 5 伏直流電
額定開關距離 s n 15 毫米
保證開關距離 s a 0 … 12.15 毫米
實際開關距離 s r 13.5 … 16.5 毫米
遲滯約 10%
重復性≤ 5%
安裝類型非齊平
開關頻率參見 RF 96 ST / RF I/O
校正因子鋼（Fe360）=1；不銹鋼約。0.7； 黃銅約。0.5； 鋁約。0.4； 銅約。0.4
筆記該傳感器只能與 RF 96 ST 或 RF I/O 結合使用
類型 物料編號
Steute RF IS M30 nb-ST 0.5 m1260490
Steute RF IS M30 nb-ST 1 m1228548
Steute RF IS M30 nb-ST 2 m1189976
| 品牌 | 貨號 | 型號 |
| AQ | D72 | Ultrasound Controller D72 Rev.E |
| AQ | FCP10-25 | FCP10-25 Air Sensor PP 10mm TC25 certificate included |
| AQ | FCP14-25 | FCP14-25 Air Sensor PP 14mm TC25 certificate included |
| AQ | FCP22-50 | FCP22-50 Air Sensor PP 22mm TC50 certificate included |
| AQ | FCP4-25 | FCP4-25 Air Sensor PP 4mm TC25 certificate included |
| AQ | FCP6-25 | FCP6-25 Air Sensor PP 6mm TC25 certificate included |
| AQ | SAC10-25 2.Gen | SAC10-25 without cable, Air Sensor 316L 10mm TC25 con Material 3.1B and Ra<0.375um certificate included |
| AQ | SAC16-25 2.Gen | SAC16-25 without cable, Air Sensor 316L 16mm TC25 con Material 3.1B and Ra<0.375um certificate included |
| AQ | SAC22-50 2.Gen | SAC22-50 without cable, Air Sensor 316L 22mm TC50 con Material 3.1B and Ra<0.375um certificate included |
| AQ | SAC22-50-EX 2.Gen | SAC22-50-EX without cable, Air Sensor 316L 22mm TC50 Ex SP17ATEX3654X - II 1/2G Ex ib IIB T4 Ga/Gb Material 3.1B and Ra<0.375um certificate included |
| AQ | SAC35-50 2.Gen | SAC35-50 without cable, Air Sensor 316L 35mm TC50 con 6,00 pcs 2 332,00 30,0 9 794,40 Material 3.1B and Ra<0.375um certificate included |
| AQ | SAC35-50-EX 2.Gen | SAC35-50-EX without cable, Air Sensor 316L 35mm TC50 Ex SP17ATEX3654X - II 1/2G Ex ib IIB T4 Ga/Gb Material 3.1B and Ra<0.375um certificate included |
| AQ | SAC4.5-25 2.Gen | SAC4.5-25 without cable, Air Sensor 316L 16mm TC25 con Material 3.1B and Ra<0.375um certificate included |
| AQ | SAC6-25 2.Gen | SAC6-25 without cable, Air Sensor 316L 16mm TC25 con Material 3.1B and Ra<0.375um certificate included |
| AQ | WG-Cable-7M Ex, 2.Gen. | Blue Cable 7Meter, angled conn, los, for SAC |
| AQ | WG-Cable-7M, 2.Gen | Grey Cable 7Meter, angled connect, los, for SAC |
| AQ | SAC8-25 2.Gen | SAC8-25 without cable, Air Sensor 316L 7.75mm TC25 Material 3.1B and Ra<0.375um certificate included |
