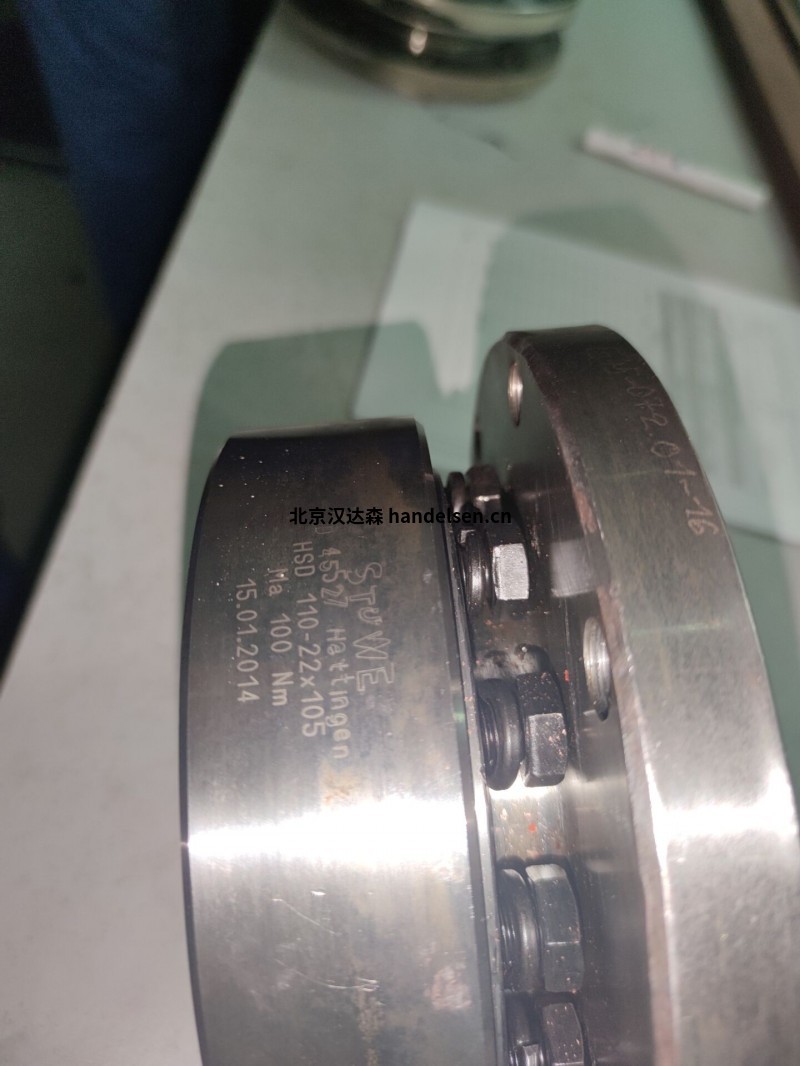

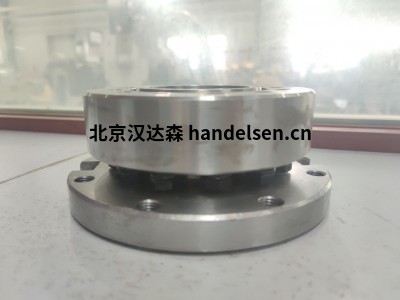

stuwe機械收縮盤：HSD
stuwe HSD型收縮盤是可移動的機械元件，用于將空心軸連接到軸上。伸縮縫是免維護的，由于壓入配合的連接而不會弄臟，因此具有廣泛的應用范圍。HSD類型是風輪機傳動系統，包裝機或行李分揀系統中軸和輪轂的經濟高效連接
高速緩存20
軸直徑20-250 mm可
傳遞的扭矩0.15-18.3 kNm
低扭矩
stuwe Areas of Application型號介紹：
stuwe HSD 20 20 - 250 mm 0,15 - 18,3 kNm Low torques
stuwe HSD 21 110 - 730 mm 16 - 4033 kNm Medium-sized torques
stuwe HSD 22 9 - 1050 mm 0,02 -16493 kNm High torques
stuwe HSD 23 100 - 1050 mm 26 -19684 kNm Very high torques
stuwe HSD 81 38 - 1050 mm 1,5 -19958 kNm Identical to series 22 but
20 - 30 % higher torques
stuwe HSD 83 100 - 1050 mm 30 - 23811 kNm Identical to series 23 but
20 - 30 % higher torques
1.1、Shrink Disc Type HSD – Series 20
*Tightening bolts: standard DIN EN ISO 4014/4017 Grade 10.9, alternative DIN EN ISO 4762 Grade 10.9
From M16 and larger with washers: DIN EN ISO 7416
When ordering please state: (Type x Ød) e.g. HSD 35 - 20 x 34
Shrink Disc Type HSD
HSD 24 - 20 24 20 0.15 15 12 6 x M6 50 11.5 17 38 25.5 1.5 0.2
21 0.17 17
22 0.21 19
HSD 29 - 20 29 25 0.22 18 12 6 x M6 58 12.5 18 44 32 1.5 0.2
26 0.25 19
27 0.29 21
HSD 35 - 20 34 29 0.22 15 12 5 x M6 64 12.5 18 52 39 1.5 0.2
35 30 0.25 16
32 0.31 19
HSD 40 - 20 38 34 0.28 16 12 6 x M6 69 12.2 18 55 43 1.6 0.3
40 35 0.31 18
36 0.34 19
HSD 46 - 20 46 38 0.41 22 12 6 x M6 80 13 23 62 49 2.5 0.4
47 40 0.50 25
42 0.60 28
HSD 51 - 20 51 44 0.55 25 12 8 x M6 86 13 23 67 54 2.6 0.5
45 0.60 27
47 0.70 30
HSD 56 - 20 55 48 0.57 24 12 8 x M6 90 13 23 72 59 3 0.5
56 50 0.66 26
57 52 0.76 29
HSD 61 - 20 61 53 0.68 26 12 8 x M6 96 13 24 76 64 3 0.6
55 0.79 29
57 0.90 32
HSD 66 - 20 65 58 0.74 26 12 8 x M6 100 13 24 82 69 3 0.6
66 60 0.85 28
62 0.97 31
HSD 73 - 20 70 63 0.94 30 29 9 x M8 115 18 30 94 77 3 1.2
72 65 1.07 33
73 68 1.29 38
HSD 78 - 20 76 68 1.21 36 29 9 x M8 120 18 30 100 82 3 1.2
78 70 1.36 39
72 1.52 42
HSD 83 - 20 81 73 1.24 34 29 9 x M8 125 18 30 104 87 3 1.3
83 75 1.38 37
77 1.54 40
HSD 88 - 20 86 78 1.47 38 29 9 x M8 130 18 30 110 92 3 1.4
88 80 1.62 40
82 1.78 43
HSD 93 - 20 93 83 1.63 39 29 9 x M8 135 18 31 114 97 3 1.4
94 85 1.80 42
87 1.97 45
HSD 98 - 20 96 88 1.72 39 29 9 x M8 140 18 31 120 102 3 1.5
98 90 1.89 42
92 2.07 45
HSD 103 - 20 103 93 2.13 46 29 10 x M8 145 18 31 124 107 3.5 1.5
95 2.31 49
97 2.50 52
HSD 108 - 20 106 98 2.16 44 29 10 x M8 150 18 31 128 112 3.5 1.6
108 100 2.34 47
102 2.53 50
HSD 115 - 20 112 103 2.34 45 29 10 x M8 160 22 35 134 118 3.5 2.1
115 105 2.54 48
108 2.86 53
HSD 120 - 20 118 108 2.82 52 29 10 x M8 164 22 35 140 124 3.5 2.1
120 110 3.03 55
113 3.37 60
HSD 125 - 20 125 113 2.94 52 29 12 x M8 169 22 35 144 129 3.5 2.2
115 3.16 55
118 3.49 59
HSD 130 - 20 130 118 3.15 53 29 12 x M8 174 22 35 150 134 3.5 2.2
120 3.37 56
123 3.71 60
HSD 135 - 20 135 123 3.57 58 29 12 x M8 179 22 35 154 139 3.5 2.3
125 3.81 61
128 4.19 66
HSD 140 - 20 138 128 3.93 61 29 12 x M8 184 22 36 160 144 4 2.4
140 130 4.18 64
132 4.44 67
HSD 145 - 20 145 133 4.39 66 29 12 x M8 189 22 36 164 149 4 2.5
135 4.65 69
137 4.92 72
HSD 150 - 20 150 138 4.89 71 29 12 x M8 194 22 36 170 154 4 2.5
140 5.16 74
142 5.44 77
HSD 160 - 20 160 146 4.86 67 29 12 x M8 204 22 35 180 164 4 2.6
150 5.39 72
152 5.67 75
HSD 170 - 20 166 156 5.20 67 29 12 x M8 214 22 35 190 174 4 3.0
170 160 5.73 72
162 6.01 74
HSD 182 - 20 182 166 7.62 92 29 14 x M8 230 25 41 206 188 5 3.9
170 8.35 98
172 8.73 101
HSD 192 - 20 189 176 8.35 95 29 14 x M8 240 25 41 216 198 5 3.9
192 180 9.09 101
182 9.47 104
HSD 202 - 20 197 186 8.88 95 29 15 x M8 250 25 41 224 208 5.5 4.6
198 190 9.67 102
202 192 10.08 105
HSD 212 - 20 212 196 9.74 99 29 15 x M8 260 25 41 234 218 5.5 4.4
200 10.55 106
202 10.97 109
HSD 222 - 20 220 206 10.83 105 29 16 x M8 270 25 42 244 228 5.7 4.9
222 210 11.66 111
212 12.09 114
HSD 232 - 20 230 216 14.40 133 29 16 x M8 280 25 42 254 238 5.7 5.0
232 220 15.35 140
222 15.83 143
HSD 242 - 20 242 226 15.27 135 29 16 x M8 290 25 42 264 248 5.7 5.0
230 16.22 141
232 16.72 144
HSD 252 - 20 252 234 15.98 137 29 16 x M8 300 25 42 274 258 6 5.2
238 16.94 142
240 17.44 145
HSD 262 - 20 262 244 16.84 138 29 18 x M8 310 25 42 286 268 6 5.6
248 17.80 144
250 18.30 146
