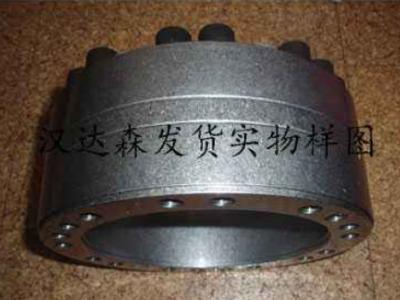

RINGFEDER鎖緊組件RfN 7012簡介
RINGFEDER ®鎖緊組件設有帶自釋放錐形雙錐形止推環。它們橋接相對較大的裝配間隙，易于安裝，調節或拆卸，但不自動定心。通常需要預先定心的轂部分。
特點
簡潔的設計，特別適合空間有限的應用。鎖定組件RfN 7012可以補償較小的公差偏差并可以補償較小的安裝誤差。
較大的傳遞力和力矩 –多個鎖定組件RfN 7012可以一個接一個放置。增加了可傳遞的扭矩和軸向力-請在這方面咨詢我們的技術專家。
RINGFEDER鎖緊組件RfN 7012簡介
彎矩和徑向載荷 –可以傳遞組合載荷。（請聯系我們的技術部門尋求幫助）。
易于安裝 – RfN 7012鎖定組件可以彌合較大的間隙，而不會損失傳輸值。
污染風險低 –在擰緊過程中，將設備和連接器的功能表面壓在一起，從而產生不允許污染進入的表面壓力。
無磨損 -鎖緊組件RfN 7012無需在軸和輪轂上移動部件即可工作，從而避免了磨料磨損和間隙。因此，RfN 7012可以反復夾緊和釋放。
應用范例
鏈輪
杠桿
滑輪
滑動齒輪機構
皮帶鼓
行走輪
電纜槽輪
鎖緊組件的安裝
鎖緊組件已涂上少許油脂，即可使用。T，F(xiàn) ax，p W和p N的值適用于交貨狀態下的鎖定組件。
表面處理
對于軸和輪轂孔R a = 3,2μm
公差范圍
我們建議以下安裝公差
軸：k9-h9; 花鼓：N9-H9
Max。容許軸：k11-h11; 花鼓：N11-H11
為避免壁厚較厚的止推環過度變形，鎖定組件應盡可能對稱地位于軸和輪轂孔之間。如果軸小于標稱d，則孔應同樣超過標稱D，反之亦然。同心度質量由軸和轂之間的直接定心確定。
幾個鎖緊組件RfN 7012的布置
如果要安裝多個鎖定組件，則當鎖定組件位于4·L的距離內時，可以添加表格的傳輸值。
螺絲擰緊扭矩的變化
鎖定組件配有12.9級螺釘?？梢詼p小螺釘?shù)臄Q緊扭矩。通過將T A值乘以0.5 得到低的允許螺釘擰緊扭矩。T，T A，F(xiàn) ax，p W和p N之間存在近似線性關系。
輔助螺紋
為了便于拆卸，前止推環有輔助螺紋。
RINGFEDER RFN7012系列漲緊套型號大全：
RFN7012漢19達森47
RFN7012漢20達森47
RFN7012漢22達森47
RFN7012漢24達森50
RFN7012漢25達森50
RFN7012漢28達森55
RFN7012漢30達森55
RFN7012漢32達森60
RFN7012漢35達森60
RFN7012漢38達森65
RFN7012漢40達森65
RFN7012漢42達森75
RFN7012漢45達森75
RFN7012漢48達森80
RFN7012漢50達森80
RFN7012漢55達森85
RFN7012漢60達森90
RFN7012漢65達森95
RFN7012漢70達森110
RFN8006 25x30
25x30 RFN8006
RFN8006 28x32
28x32 RFN8006
RFN8006 30x35
30x35 RFN8006
RFN8006 32x36
32x36 RFN8006
RFN8006 35x40
35x40 RFN8006
RFN8006 36x42
36x42 RFN8006
RFN8006 38x44
38x44 RFN8006
RFN8006 40x45
40x45 RFN8006
RFN8006 42x48
42x48 RFN8006
RFN8006 45x52
45x52 RFN8006
RFN8006 48x55
48x55 RFN8006
RFN8006 50x57
50x57 RFN8006
RFN8006 55x62
55x62 RFN8006
RFN8006 56x64
56x64 RFN8006
RFN8006 60x68
60x68 RFN8006
RFN8006 63x71
63x71 RFN8006
RFN8006 65x73
65x73 RFN8006
RFN8006 70x79
70x79 RFN8006
RFN8006 71x80
71x80 RFN8006
RFN8006 75x84
75x84 RFN8006
RFN8006 80x91
80x91 RFN8006
RFN8006 85x96
85x96 RFN8006
RFN8006 90x101
90x101 RFN8006
RFN8006 95x106
95x106 RFN8006
RFN8006 100x114
100x114 RFN8006
RFN8006 110x124
110x124 RFN8006
RFN8006 120x134
120x134 RFN8006
RFN8006 130x148
130x148 RFN8006
RFN8006 140x158
140x158 RFN8006
RFN8006 150x168
150x168 RFN8006
RFN8006 160x178
160x178 RFN8006
RFN8006 170x191
170x191 RFN8006
RFN8006 180x201
180x201 RFN8006
RFN8006 190x211
190x211 RFN8006
RFN8006 200x224
200x224 RFN8006
RFN8006 210x234
210x234 RFN8006
RFN8006 220x244
220x244 RFN8006
RFN8006 230x257
230x257 RFN8006
RFN8006 240x267
240x267 RFN8006
RFN8006 250x280
250x280 RFN8006
RFN8006 260x290
260x290 RFN8006
RFN8006 270x300
270x300 RFN8006
RFN8006 280x313
280x313 RFN8006
RFN8006 290x323
290x323 RFN8006
RFN8006 300x333
300x333 RFN8006
RFN8006 320x360
320x360 RFN8006
RFN8006 340x380
340x380 RFN8006
RFN8006 360x400
360x400 RFN8006
RFN8006 380x420
380x420 RFN8006
RFN8006 400x440
400x440 RFN8006
RFN8006 420x460
420x460 RFN8006
RFN8006 440x480
440x480 RFN7012
RFN7012 19x47
19x47 RFN7012
RFN7012 20x47
20x47 RFN7012
RFN7012 22x47
22x47 RFN7012
RFN7012 24x50
24x50 RFN7012
RFN7012 25x50
25x50 RFN7012
RFN7012 28x55
28x55 RFN7012
RFN7012 30x55
30x55 RFN7012
RFN7012 32x60
32x60 RFN7012
RFN7012 35x60
35x60 RFN7012
RFN7012 38x65
38x65 RFN7012
RFN7012 40x65
40x65 RFN7012
RFN7012 42x75
42x75 RFN7012
RFN7012 45x75
45x75 RFN7012
RFN7012 48x80
48x80 RFN7012
RFN7012 50x80
50x80 RFN7012
RFN7012 55x85
55x85 RFN7012
RFN7012 60x90
60x90 RFN7012
RFN7012 65x95
65x95 RFN7012
RFN7012 70x110
70x110 RFN7012
RFN7012 75x115
75x115 RFN7012
RFN7012 80x120
80x120 RFN7012
RFN7012 85x125
85x125 RFN7012
RFN7012 90x130
90x130 RFN7012
RFN7012 95x135
95x135 RFN7012
RFN7012 100x145
100x145 RFN7012
RFN7012 110x155
110x155 RFN7012
RFN7012 120x165
120x165 RFN7012
RFN7012 130x180
130x180 RFN7012
RFN7012 140x190
140x190 RFN7012
RFN7012 150x200
150x200 RFN7012
RFN7012 160x210
160x210 RFN7012
RFN7012 170x225
170x225 RFN7012
RFN7012 180x235
180x235 RFN7012
RFN7012 190x250
190x250 RFN7012
RFN7012 200x260
200x260 RFN7012
RFN7012 220x285
220x285 RFN7012
RFN7012 240x305
240x305 RFN7012
RFN7012 260x325
260x325 RFN7012
RFN7012 280x355
280x355 RFN7012
RFN7012 300x375
300x375 RFN7012
RFN7012 320x405
320x405 RFN7012
RFN7012 340x425
340x425 RFN7012
RFN7012 360x455
360x455 RFN7012
RFN7012 380x475
380x475 RFN7012
RFN7012 400x495
400x495 RFN7012
RFN7012 420x515
420x515 RFN7012
RFN7012 440x545
440x545 RFN7012
RFN7012 460x565
460x565 RFN7012
RFN7012 480x585
480x585 RFN7012
RFN7012 500x605
500x605 RFN7014
RFN7014 70x120
70x120 RFN7014
RFN7014 80x130
80x130 RFN7014
RFN7014 90x140
90x140 RFN7014
RFN7014 100x160
100x160 RFN7014
RFN7014 110x170
110x170 RFN7014
RFN7014 120x180
120x180 RFN7014
RFN7014 130x190
130x190 RFN7014
RFN7014 140x200
140x200 RFN7014
RFN7014 150x210
150x210 RFN7014
RFN7014 160x230
160x230 RFN7014
RFN7014 170x240
170x240 RFN7014
RFN7014 180x250
180x250 RFN7014
RFN7014 190x260
190x260 RFN7014
RFN7014 200x270
200x270 RFN7014
RFN7014 220x300
220x300 RFN7014
RFN7014 240x320
240x320 RFN7014
RFN7014 260x340
260x340 RFN7014
RFN7014 280x370
280x370 RFN7014
RFN7014 300x390
300x390 RFN7013.1
RFN7013.1 20x47
20x47 RFN7013.1
RFN7013.1 22x47
22x47 RFN7013.1
RFN7013.1 24x50
24x50 RFN7013.1
RFN7013.1 25x50
25x50 RFN7013.1
RFN7013.1 28x55
28x55 RFN7013.1
RFN7013.1 30x55
30x55 RFN7013.1
RFN7013.1 32x60
32x60 RFN7013.1
RFN7013.1 35x60
35x60 RFN7013.1
RFN7013.1 38x65
38x65 RFN7013.1
RFN7013.1 40x65
40x65 RFN7013.1
RFN7013.1 42x75
42x75 RFN7013.1
RFN7013.1 45x75
45x75 RFN7013.1
RFN7013.1 48x80
48x80 RFN7013.1
RFN7013.1 50x80
50x80 RFN7013.1
RFN7013.1 55x85
55x85 RFN7013.1
RFN7013.1 60x90
60x90 RFN7013.1
RFN7013.1 65x95
65x95 RFN7013.1
RFN7013.1 70x110
70x110 RFN7013.1
RFN7013.1 75x115
75x115 RFN7013.1
RFN7013.1 80x120
80x120 RFN7013.1
RFN7013.1 85x125
85x125 RFN7013.1
RFN7013.1 90x130
90x130 RFN7013.1
RFN7013.1 95x135
95x135 RFN7013.1
RFN7013.1 100x145
100x145 RFN7013.1
RFN7013.1 110x155
110x155 RFN7013.1
RFN7013.1 120x165
120x165 RFN7013.1
RFN7013.1 130x180
130x180 RFN7013.1
RFN7013.1 140x190
140x190 RFN7013.1
RFN7013.1 150x200
150x200
RFN7015.0
RFN7015.0100x145
100x145RFN7015.0
RFN7015.0110x155
110x155RFN7015.0
RFN7015.0120x165
120x165RFN7015.0
RFN7015.0130x180
130x180RFN7015.0
RFN7015.0140x190
140x190RFN7015.0
RFN7015.0150x200
150x200RFN7015.0
RFN7015.0160x210
160x210RFN7015.0
RFN7015.0170x225
170x225RFN7015.0
RFN7015.0180x235
180x235RFN7015.0
RFN7015.0190x250
190x250RFN7015.0
RFN7015.0200x260
200x260RFN7015.0
RFN7015.0220x285
220x285RFN7015.0
RFN7015.0240x305
240x305RFN7015.0
RFN7015.0260x325
260x325RFN7015.0
RFN7015.0280x355
280x355RFN7015.0
RFN7015.0300x375
300x375RFN7015.0
RFN7015.0320x405
320x405RFN7015.0
RFN7015.0340x425
340x425RFN7015.0
RFN7015.0360x455
360x455RFN7015.0
RFN7015.0380x475
380x475RFN7015.0
RFN7015.0400x495
400x495RFN7015.0
RFN7015.0420x515
420x515RFN7015.0
RFN7015.0440x515
440x515RFN7015.0
RFN7015.0460x565
460x565RFN7015.0
RFN7015.0480x585
480x585RFN7015.0
RFN7015.0500x605
500x605RFN7015.0
RFN7015.0520x630
520x630RFN7015.0
RFN7015.0540x650
540x650RFN7015.0
RFN7015.0560x670
560x670RFN7015.0
RFN7015.0580x690
580x690RFN7015.0
RFN7015.0600x710
600x710
RFN7110
RFN71108x15
8x15RFN7110
RFN71109x16
9x16RFN7110
RFN711010x16
10x16RFN7110
RFN711011x18
11x18RFN7110
RFN711012x18
12x18RFN7110
RFN711014x23
14x23RFN7110
RFN711015x24
15x24RFN7110
RFN711016x24
16x24RFN7110
RFN711018x26
18x26RFN7110
RFN711019x27
19x27RFN7110
RFN711020x28
20x28RFN7110
RFN711022x32
22x32RFN7110
RFN711024x34
24x34RFN7110
RFN711025x34
25x34RFN7110
RFN711028x39
28x39RFN7110
RFN711030x41
30x41RFN7110
RFN711032x43
32x43RFN7110
RFN711035x47
35x47RFN7110
RFN711038x50
38x50RFN7110
RFN711040x53
40x53RFN7110
RFN711042x55
42x55RFN7110
RFN711045x59
45x59RFN7110
RFN711048x62
48x62RFN7110
RFN711050x65
50x65RFN7110
RFN711055x71
55x71RFN7110
RFN711060x77
60x77RFN7110
RFN711065x84
65x84RFN7110
RFN711070x90
70x90125
125RFN4051
RFN4051140
140RFN4051
RFN4051155
155RFN4051
RFN4051165
165RFN4051
RFN4051175
175RFN4051
RFN4051185
185RFN4051
RFN4051195
195RFN4051
RFN4051200
200RFN4051
RFN4051220
220RFN4051
RFN4051240
240RFN4051
RFN4051260
260RFN4051
RFN4051280
280RFN4051
RFN4051300
300RFN4051
RFN4051320
320RFN4051
RFN4051340
340RFN4051
RFN4051350
350RFN4051
RFN4051360
360RFN4051
RFN4051380
380RFN4051
RFN4051390
390RFN4051
RFN4051400
400RFN4051
RFN4051420
420RFN4051
RFN4051440
440RFN4051
RFN4051460
460RFN4051
RFN4051480
480RFN4051
RFN4051500
500RFN4051
RFN4051125
北京漢達森德國本土采購，拼箱發貨報關，德國技術支持，終身售后服務，貨期保證，價格公道，歡迎垂詢!如需更多信息歡迎垂詢漢達森品牌專員吳亞男。
