可根據客戶需求定制
| 祁佳強 QQ：2850590582 手機：17744536447 電話：010-64714988-216 傳真：010-64714988-668 郵件：tk5@handelsen.cn |
 |
 |
可適應所有類型的電源電壓
可配置自制動裝置
可選速度傳感器 - 編碼器 - 解析器
低噪音水平
防護等級IP55，可根據要求 IP66
可選噴漆
可選溫度傳感器 PTC、PTO 或 PT100

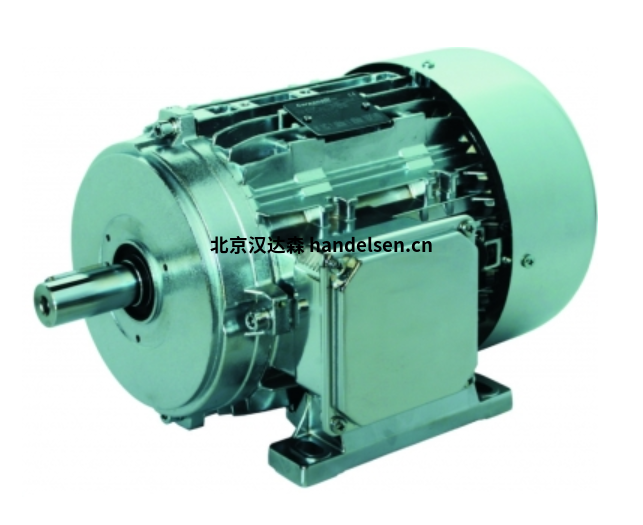

Carpanelli ME系列高效電機IE2等級2極系列
具體型號：
Carpanelli ME63a2
Carpanelli ME63b2
Carpanelli ME71a2
Carpanelli ME71b2
Carpanelli ME71c2
Carpanelli ME80a2
Carpanelli ME80b2
Carpanelli ME80c2
Carpanelli ME90sa2
Carpanelli ME90La2
Carpanelli ME90Lb2
Carpanelli ME100a2
Carpanelli ME100b2
Carpanelli ME112a2
Carpanelli ME132sa2
Carpanelli ME132La2
Carpanelli ME132Lb2
Carpanelli ME132Lc2
Carpanelli ME132Ld2
Carpanelli ME160Sa2
Carpanelli ME160La2
Carpanelli ME160Lb2
Carpanelli ME160Lc2
Carpanelli ME71a2詳細參數舉例：
功率(KW)0.37
轉速(rpm)2850
效率(%)77.2
標稱電流(A)0.91
標稱扭矩 NM 1.24
轉動慣量(kgm2*10-6)380
啟動轉矩Cs/Cn 4.15
啟動電流As/An 6.92
Carpanelli ME系列高效電機IE2等級4極系列
Carpanelli ME63a4
Carpanelli ME71a4
Carpanelli ME71b4
Carpanelli ME80a4
Carpanelli ME80b4
Carpanelli ME80c4
Carpanelli ME80d4
Carpanelli ME90Sa4
Carpanelli ME90La4
Carpanelli ME90Lb4
Carpanelli ME100a4
Carpanelli ME100b4
Carpanelli ME112a4
Carpanelli ME112b4
Carpanelli ME132La4
Carpanelli ME132Lb4
Carpanelli ME132Lc4
Carpanelli ME160sa4
Carpanelli ME160La4
Carpanelli ME63a4詳細參數舉例：
功率(KW)0.19
轉速(rpm)1350
效率(%)67.4
標稱電流(A)0.6
標稱扭矩 NM 1.32
轉動慣量(kgm2*10-6)240
啟動轉矩Cs/Cn 2.81
啟動電流As/An 3.5
Carpanelli ME系列高效電機IE2等級6極系列
Carpanelli ME71a6
Carpanelli ME90Sa6
Carpanelli ME90La6
Carpanelli ME100a6
Carpanelli ME112a6
Carpanelli ME112b6
Carpanelli ME132Sa6
Carpanelli ME132La6
Carpanelli ME132Lb6
Carpanelli ME160Sa6
Carpanelli ME160La6
Carpanelli ME160Lb6
Carpanelli ME160Lb6詳細參數舉例：
功率(KW)15
轉速(rpm)960
效率(%)89.7
標稱電流(A)31.4
標稱扭矩 NM 148.6
轉動慣量(kgm2*10-6)164450
啟動轉矩Cs/Cn 2.2
啟動電流As/An 7
Carpanelli ME系列高效電機IE2等級8極系列
Carpanelli ME80a8
Carpanelli ME100a8
